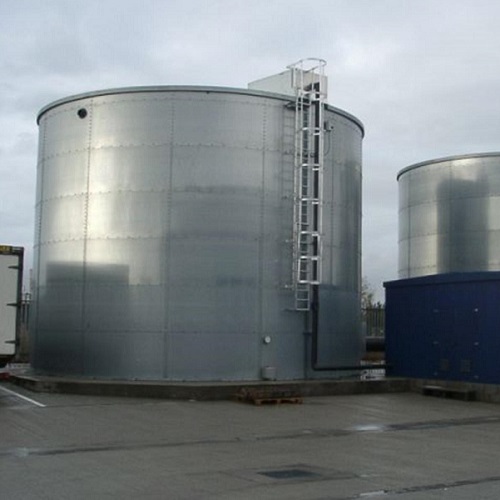

Liquistore Galvanised Steel Water Tank - 221000 Litres
SKU
FHDWT221000
Specification
| Height - mm | 5977 |
|---|---|
| Capacity - Litres | 221000 |
| Suitable for Drinking Water (Potable) | No |
| WRAS Approved | No |
Details
Designed to store large quantities of water, the Liquistore range of galvanised steel tanks are suitable for general industrial water storage. The galvanised steel tank panels are manufactured from high quality pre-galvanised strip to BS2989 Grade Z35 with a zinc coating of 300g/m² to each side of the tank panel.
The metal tank exterior is highly corrosion resistant and the internal tank liner separates the stored liquid from the inside tank walls to prevent corrosion. The tank liner itself will also not corrode or deteriorate. All tank fittings, flanges and accessories supplied with this tank are also galvanised as standard to protect from corrosion. The galvanised coating of the tank shell and applicable accessories guarantee long durability and low maintenance is required.
The tanks are constructed using site assembled components, consisting of overlapped and bolted galvanised steel panels with a sectional aluminium cover. The tank is supplied with a 1.0mm thick internal, open top membrane liner in either butyl or EPDM rubber. If the tank is to be used for the storage of potable (drinkable) water, a special grade of Butyl rubber liner is available which has been tested to BS6920 and is WRAS (Water Regulations Advisory Scheme) approved.
The tanks are constructed with no sealant used on the tank’s shell which means that the site installation can make full use of hydraulic jacking with the confidence in knowing that the integrity of the tank is not reliant on a large number of individual panel seals.
Each tank is supplied complete with the following connections/ancillary equipment;
• 1x Aluminium cover
• 1x 1.0mm thick WRC approved tank liner
• 1x Access ladder with platform
• 1x Stainless steel contents gauge
• 1x 80mm Drain valve
• 1x 50mm Inlet connection in stainless steel (excluding cast iron equilibrium ball/float valve
• 1x 100mm Outlet connection, external stainless steel spool piece approx. 150mm long
• 1x 3Kw Immersion heater (excluding wiring)
• 1x Stainless steel manway
• 1x 25mm Warning overflow in UPVC
• 3x Pipe brackets
Tank Dimensions:
Diameter: 7640mm
Height to rim: 5142mm
Overall Height: 5977mm
Tank Capacity: 221,000 litres / 48.613 gallons
The Liquistore has been designed to be unaffected by normal UK weather conditions and can withstand moderate wind speeds. The actual weather resistance of the tank will depend upon the tank configuration and diameter to height ratio. If the tank is expected to be subjected to severe weather conditions for prolonged periods, it is essential for the tank to be supplied with additional strengthening.
Foundations:
All that is required to site the tank is a flat load bearing surface such as reinforced concrete. The bottom rolled angle of the tank base simply bolts down to the concreted groundwork. See below image;
By using the latest construction methods which use hydraulic jacks, a small team can erect the cylindrical tanks within a few days. This process also reduces the health and safety risks by eliminating the need to work at height.
The price of this tank includes the delivery and onsite installation of the tank with all risk assessments, safety method statements and COSHH assessments carried out prior to construction.
Important Delivery Information:
The price of this tank includes the delivery and installation to most UK Mainland locations.
Delivery to any of the following areas will incur additional delivery charges:
Northern Ireland, Channel Islands, Scottish Highlands and Offshore islands including the following postcode areas - PH17-26, PH30-44, PH49-50, PA20-40, PA60-78, IV, HS, AB, KA27-28, KW, ZE.
Please enquire for additional charges to these locations.
